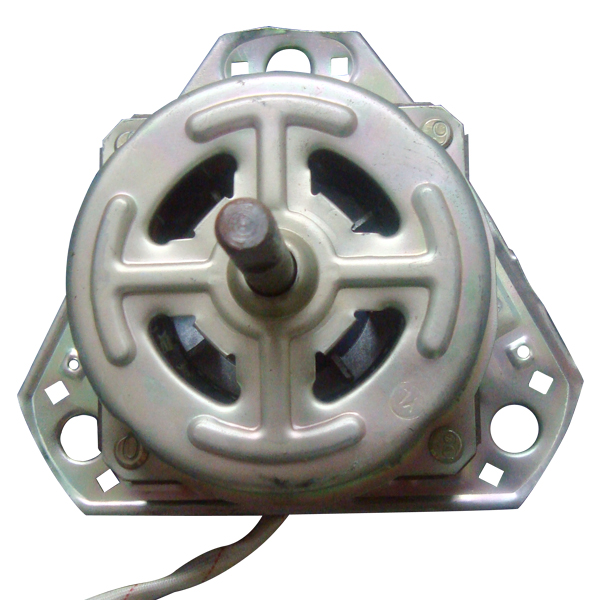

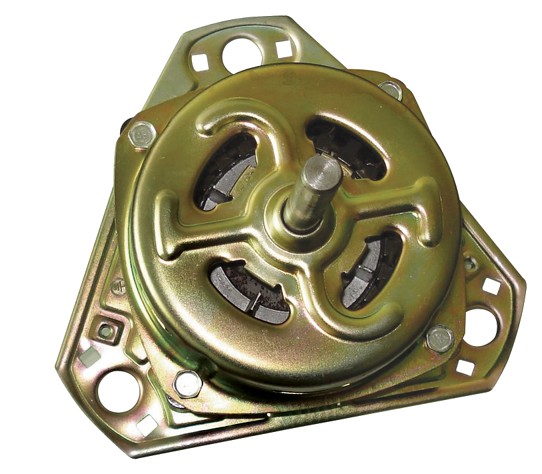

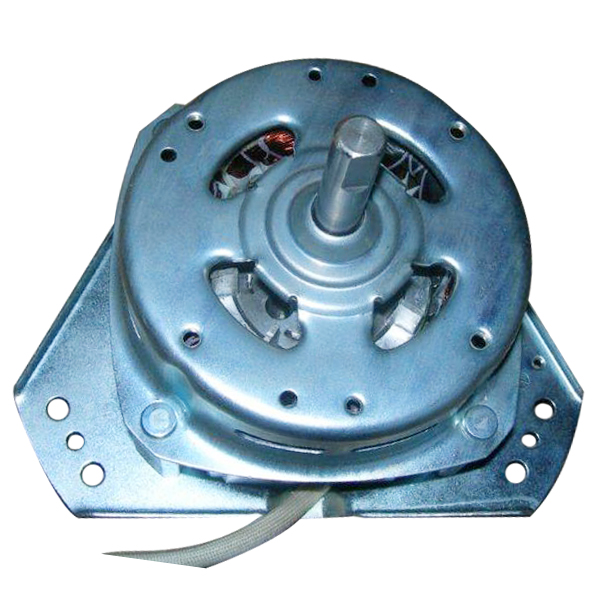

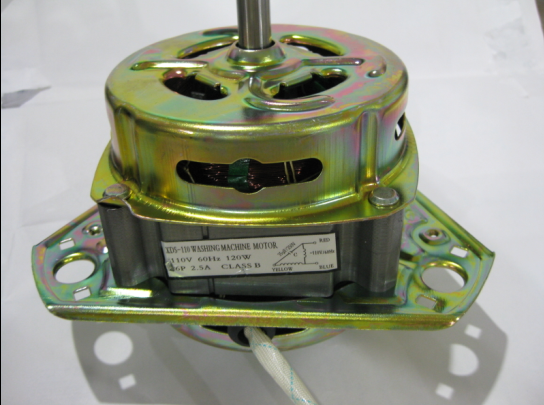

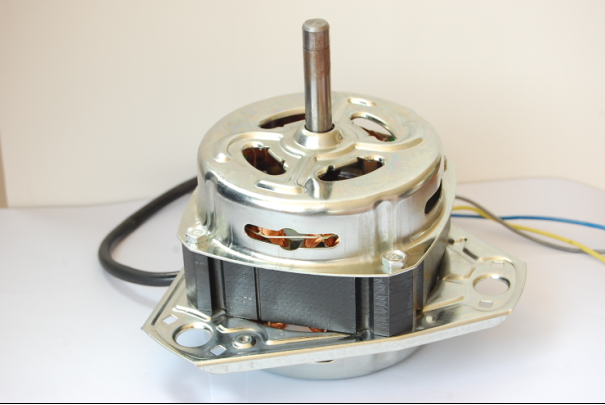

Voltage:110V, 127V, 220V, 230V, 240V, 220-240V
Frequency: 50Hz, 60Hz, 50/60Hz
Power: 90-220W
Material:
Stator lamination: Silicon steel Q195
Rotor lamination: Silicon steel Q195
Rotor endring: primary ingot
Shaft: Steel #45 C D: Φ10 or Φ12
Cover(top/bottom): galvanized steel or aluminium
Winding: Enamelled round copper/aluminium/copper clad aluminium wire
Insulation class: Class B. Class E or Class F
Pole: 4 pole or 6 pole
Bearing type: Bush bearing or ball bearing based on customer’s request
Noise: <55db
Delivery:30-35days after receive the deposit
MOQ: 1000pcs/model
Packing details:Fit to exported standard, safe and strong,in cartons or in pallets
1) in cartons (4pcs/ctn) Qty/20GP: 6000pcs (1500 cartons) about 17tons
2) in pallets(180pcs/plt) Qty/40GP: 7200pcs (40 pallets) about 22tons
3) in pallets (216pcs/plt) Qty/40HQ: 8640pcs (40 pallets) about 25tons
Payment terms:T/T 30% deposit,and balance 70% paid against B/L copy
OEM: Welcome, we can produce very same with your drawing and request
